Shot Blasting + Coating Integration: How to Realize Efficient Surface Treatment Integration?

2nd March 2026

Disconnected shot blasting and coating cause inefficiency; integrated systems with Wheelblast Equipment ensure quality and speed.

This guide elaborates on shot blasting + coating integration, covering shot blasting machine, Wheelblast Equipment and machine shot to achieve efficient surface treatment.

Discover key details of the integrated system to optimize your surface treatment workflow.

What Pain Points Does Shot Blasting + Coating Integration Solve?

Traditional surface treatment processes separate shot blasting and coating, which brings a series of practical pain points that restrict enterprise development.

The independent shot blasting and coating processes require manual transfer of workpieces between the shot blasting machine and coating equipment, which not only consumes a lot of labor but also extends production cycles, making it difficult to meet large-scale production needs.
After shot blasting, the workpiece surface is exposed to air, dust, and moisture, leading to re-rusting or contamination. This directly reduces the adhesion of the subsequent coating, resulting in quality defects such as peeling, bubbling, and uneven coating, increasing rework costs.
Separate processes require more workshop space for equipment placement and workpiece storage, and the energy consumption of two independent systems is much higher than that of an integrated system. Shot blasting + coating integration perfectly solves these problems by integrating the two processes into a continuous production line. The integrated system uses a high-performance shot blasting machine equipped with advanced Wheelblast Equipment to complete efficient shot blasting, and the workpiece is directly sent to the coating section without transfer.

Machine shot is recycled in the shot blasting machine, reducing material waste and environmental pollution. Shot blasting creates a clean, rough surface for the workpiece, laying a solid foundation for high-quality coating. This integration not only improves production efficiency by 40%-60% but also reduces labor and energy costs, ensuring stable product quality.

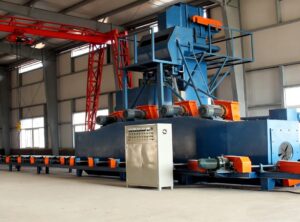

shot blaster

How to Match Shot Blasting Machine with Coating Equipment in the Integrated System?

The rational matching between the shot blasting machine and coating equipment is the key to ensuring the efficient operation of the integrated system. The shot blasting machine in the integrated line must be selected according to the workpiece specifications, production scale, and coating requirements.

For small and medium-sized workpieces, a compact tumble shot blasting machine is suitable, while for large workpieces such as steel structures, a through-type shot blasting machine with multiple Wheelblast Equipment is preferred. The shot blasting efficiency of the shot blasting machine must be consistent with the coating speed to avoid bottlenecks in the production line. The shot blasting machine is equipped with adjustable Wheelblast Equipment, which can adjust the shot blast intensity, shot flow rate, and blast angle according to the workpiece material and surface requirements, ensuring that the shot blasting effect meets the coating standards.
Machine shot selection is also closely related to the matching effect—using high-quality, uniform machine shot can ensure stable shot blasting, reduce wear on the shot blasting machine and Wheelblast Equipment, and avoid affecting the coating effect. In addition, the conveying system between the shot blasting machine and coating equipment must be smooth and sealed, preventing dust and machine shot from entering the coating section, which would affect the coating quality. The rational matching of the shot blasting machine and coating equipment ensures the continuity and stability of the integrated system, maximizing production efficiency and product quality.

Shot blaster

How to Maintain Wheelblast Equipment to Ensure Stable Operation of the Integrated System?

Wheelblast Equipment is the core component of the shot blasting machine in the integrated system, and its stable operation directly determines the efficiency of shot blasting and the quality of subsequent coating. Therefore, daily maintenance of Wheelblast Equipment is essential.

Before starting the shot blasting machine every day, check the wear of the blast wheel, impeller, and lining of the Wheelblast Equipment. If the wear exceeds the standard, replace them in a timely manner to avoid affecting the shot blast intensity and uniformity.
Regularly clean the Wheelblast Equipment pipelines to remove accumulated machine shot and impurities, preventing blockages that affect the shot flow rate.
Lubricate the rotating parts of the Wheelblast Equipment regularly, such as bearings and impellers, to reduce friction and extend service life.
Adjust the balance of the Wheelblast Equipment impeller regularly to avoid vibration during operation, which would damage the shot blasting machine and affect the shot blasting effect. In addition, the parameters of the Wheelblast Equipment should be checked and adjusted regularly according to the workpiece characteristics and coating requirements to ensure that the shot blasting effect is always in the optimal state.

Proper maintenance of Wheelblast Equipment not only extends its service life but also ensures the stable operation of the shot blasting machine and the entire integrated system, reducing downtime and maintenance costs.

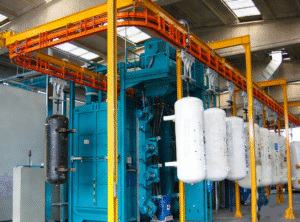

shot blasting

How to Optimize Machine Shot Use in the Integrated Shot Blasting + Coating System?

Machine shot is an essential consumable in the integrated system, and optimizing its use can not only improve the shot blasting effect but also reduce costs and protect the shot blasting machine and Wheelblast Equipment.

Select the appropriate machine shot according to the workpiece material and surface requirements. For example, for high-strength steel workpieces, use high-hardness machine shot (HRC 50-55) to ensure thorough shot blasting; for precision workpieces, use small-particle machine shot (0.6-1.0mm) to avoid damaging the workpiece surface.
Ensure the cleanliness and dryness of machine shot. Damp or contaminated machine shot is easy to agglomerate, blocking the pipelines of the shot blasting machine and affecting the shot blast uniformity. The integrated system is equipped with an automatic machine shot recycling and screening system, which can separate usable machine shot from impurities and broken particles, ensuring that only qualified machine shot is used for shot blasting.
Control the machine shot supply reasonably. Too little machine shot will reduce the shot blast intensity and efficiency, while too much machine shot will increase the load of the Wheelblast Equipment and the shot blasting machine, leading to excessive wear.
Replenish new machine shot regularly according to the consumption situation to ensure that the machine shot quality and quantity meet the shot blasting requirements. Optimizing machine shot use can improve the shot blasting effect, extend the service life of the shot blasting machine and Wheelblast Equipment, and reduce production costs.

shot blasting machine

What Are the Key Design Points of the Shot Blasting + Coating Integrated Line?

The design of the shot blasting + coating integrated line directly affects its efficiency, stability, and applicability. When designing the integrated line, the following key points must be considered.

Determine the production scale and workpiece specifications. According to the daily output and workpiece size, select the appropriate type and model of the shot blasting machine, Wheelblast Equipment, and coating equipment to avoid over-configuration or insufficient capacity.
Reasonably layout the integrated line. The shot blasting machine, conveying system, coating equipment, drying section, and dust removal system should be arranged in a logical order to ensure smooth workflow and reduce the occupied space.
Strengthen the sealing performance. The transition area between the shot blasting machine and coating equipment, as well as the entire production line, should be fully sealed to prevent dust, machine shot, and coating mist from leaking, ensuring a clean working environment and stable product quality.
Configure an intelligent control system. The integrated line should be equipped with a centralized control panel to realize the automatic control of the shot blasting machine, Wheelblast Equipment, conveying system, and coating equipment, reducing manual operation and improving production efficiency.
Consider the scalability of the integrated line. The design should reserve space for future upgrades, allowing the addition of new equipment or the adjustment of parameters to adapt to changes in production needs. By focusing on these key design points, the integrated line can achieve efficient, stable, and sustainable operation, meeting the enterprise’s surface treatment needs.
