- High Efficiency – Quick and thorough cleaning.
- Durable Construction – Robust materials for longevity.
- Customizable Solutions – Tailored to specific needs.
- Energy-Saving Technology – Reduces costs, lessens environmental impact.
- Expert After-Sales Support – Comprehensive service and technical assistance.

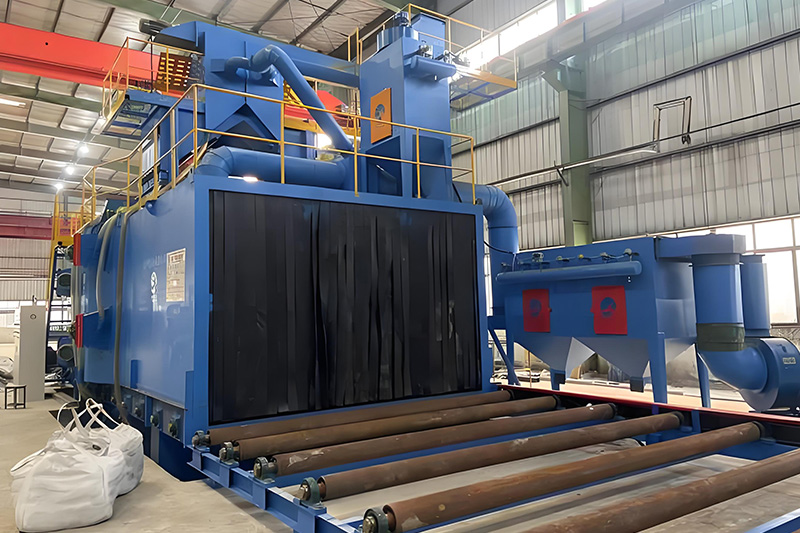

QL Series
QL Series
- Customized design;
- Modular design for shipping;
- Speed adjustable from 5m/min to 4m/min;
- Automatic PLC control;
- Wear-resistant manganese steel liner, lifetime is around 15000 hours;
- Automatic abrasive recycle system;
Quote Now
Product Parameters
Applications
Cleaning, Corrosion Removal, Paint Stripping, Rust and Heat Scale Removal for large steel plates, profiles and structures.
Main Benefits
- Customized design;
- Modular design for shipping;
- Speed adjustable from 5m/min to 4m/min;
- Automatic PLC control;
- Wear-resistant manganese steel liner, lifetime is around 15000 hours;
- Automatic abrasive recycle system;
Model & Specification
| ITEM / MODEL | QL6920 | QL6925 | QL6930 | QL6935 |
| Workpiece width | ≤2000mm | ≤2500mm | ≤3000mm | ≤3500mm |
| Workpiece height | ≤400mm | ≤500mm | ≤600mm | ≤700mm |
| Entrance size | W2200xH500mm | W2700xH600mm | W3200xH700mm | W3700xH800mm |
| Workpiece length | 1-12m | 1-12m | 1-12m | 1-12m |
| Turbine quanity | 6 | 6 | 6/8 | 8/10 |
| Turbine motor power | 11/15 kw | 11/15 kw | 15/18.5 kw | 15/18.5/22 kw |
| Roller length | 6m-14m | 6m-14m | 6m-14m | 6m-14m |
| Foundation | with pit | with pit | with pit | with pit |
| Total power | about 120 kw | about 140 kw | about 160kw | about 200kw |
| Abrasive used | S330, S390 | S330, S390 | S330, S390 | S330, S390 |
| Dust collector | 18 Cartridge filters | 24 Cartridge filters | 30 Cartridge filters | 36 cartridge filters |
If these standard models don’t fit your needs, we can design tailor-made shot blasting machine according to your workpieces.
Feature

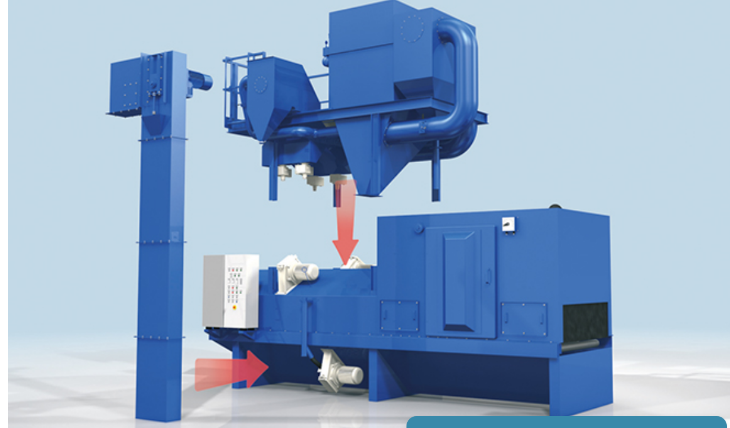

Modular design for easy shipping
- Roller conveyor shot blasting machine is mainly used to clean steel plates, profiles and structures by continuous pass through.
- The machine is made to several main parts by modular design.
- You need professional installation and commissioning.
- Foundation pit needed.
Belt Drive Blast Wheel
- Angled wheel arrangement
- Belt driven motor
- Eco motor optional
- High speed abrasive throw
- Thorough cleaning of metal surface
- High chrome wear resistant parts
Shot Blasting Cabinet
- Long lifetime Manganese protection liner
- Through bolted design, easy replacement
- Friendly maintenane
Efficient removal of abrasive
- Rotary brush and blow-off the abrasive
- Clean surface for further processing
- Adjustable height to suit different workpieces

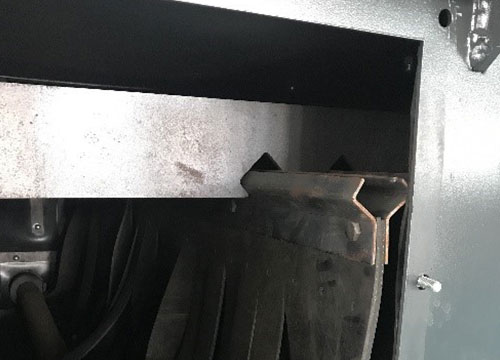

Easy maintenance
- Easy take-out rubber seal curtain
- Fast maintenance
- Wear resistant rubber material
