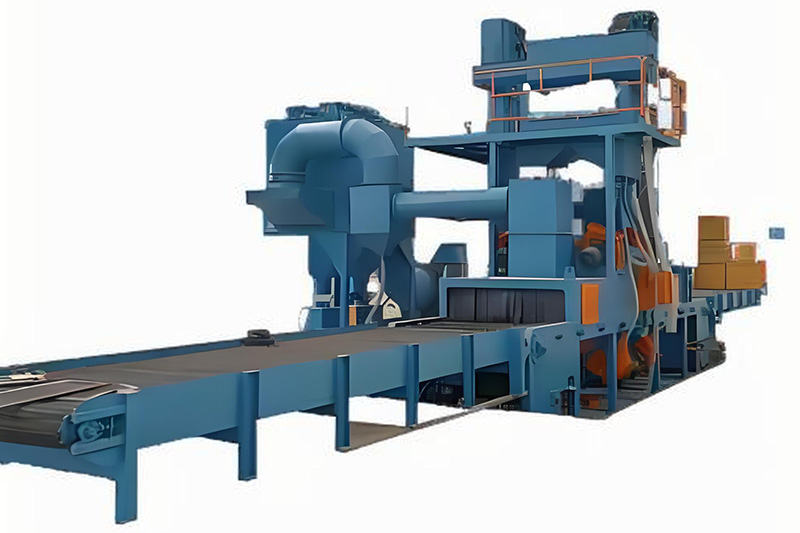

QS Series
QS Series
- Compact design and easy assembly;
- No pit needed;
- Speed adjustable from 5m/min to 4m/min;
- Automatic PLC control;
- Wear-resistant manganese steel liner, lifetime is around 15000 hours;
- Automatic abrasive recycle system;
Quote Now
Product Parameters
Applications
Cleaning, Corrosion Removal, Paint Stripping, Rust and Heat Scale Removal for small plates and profiles.
Main Benefits
- Compact design and easy assembly;
- No pit needed;
- Speed adjustable from 5m/min to 4m/min;
- Automatic PLC control;
- Wear-resistant manganese steel liner, lifetime is around 15000 hours;
- Automatic abrasive recycle system;
Model & Specification
| ITEM / MODEL | QS698 | QS6912 | QS6915 |
| Workpiece width | ≤600mm | ≤1000mm | ≤1500mm |
| Workpiece height | ≤300mm | ≤300mm | ≤400mm |
| Entrance size | W800xH400mm | W1200xH400mm | W1600xH500mm |
| Workpiece length | 1-12m | 1-12m | 1-12m |
| Turbine quanity | 4 | 4 | 4/6 |
| Turbine motor power | 7.5 kw | 7.5 kw/ 11kw | 11kw |
| Roller length | 3m-12m | 3m-12m | 3m-12m |
| Foundation | No pit | No pit | No pit |
| Total power | about 40 kw | about 60 kw | about 100kw |
| Abrasive used | S280, S330 | S280, S330 | S280, S330 |
| Dust collector | 9 Cartridge filters | 12 Cartridge filters | 16Cartridge filters |
If these standard models don’t fit your needs, we can design tailor-made shot blasting machine according to your workpieces.
Feature
Semi-finished Parts, Easy Assembly
- Roller conveyor shot blasting machine is mainly used to clean steel l plates and profiles by continuous pass through.
- The machine is made to several main parts with compact design.
- You can assemble it easily by yourself and put into production within two days.
- No pit needed.

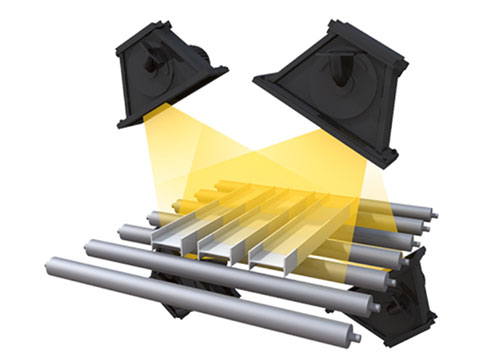

Direct Drive Blast Wheel
- Direct motor driven
- High speed abrasive throw
- Eco motor optional
- High chrome wear resistant parts
Shot Blasting Cabinet
- Long lifetime Manganese protection liner
- Through bolted design, easy replacement
Easy maintenance
- Easy take-out rubber seal curtain
- Fast maintenance
- Wear resistant rubber material
