How to Maximize Horizontal Molding Line Efficiency?

Unoptimized horizontal molding lines suffer low output; systematic upgrades boost line stability and profitability.

Explore proven strategies to optimize horizontal molding workflows, upgrade molding machine performance, and match automatic sand molding machine for higher horizontal iron casting molding line efficiency.

Read on to discover actionable upgrades for sustainable foundry productivity growth.

What Causes Low Efficiency in Traditional Horizontal Iron Casting Molding Lines?

Most traditional horizontal iron casting molding lines face persistent efficiency bottlenecks rooted in outdated equipment matching, manual-dependent workflows, and unstable sand treatment processes, severely limiting horizontal molding productivity. Conventional production systems rely heavily on semi-automatic molding machine units and manual sand mixing, leading to inconsistent molding cycle times and frequent operational errors.

• The most prominent issue is mismatched equipment coordination: many foundries deploy standard molding machine units but use outdated sand processing devices that fail to deliver qualified molding sand stably. Without precise sand parameter control, moisture fluctuation and uneven sand density cause mold collapse, sand inclusion defects, and frequent line shutdowns.
• Additionally, traditional horizontal molding workflows involve excessive manual intervention for core setting, mold calibration, and defect inspection, creating unbalanced production rhythms and long idle standby time. Industry operational data indicates that unoptimized horizontal iron casting molding lines maintain an average Overall Equipment Effectiveness (OEE) of only 55% to 60%, with nearly 40% of working hours wasted on rework, equipment waiting, and manual mistakes. These cumulative flaws reduce annual output, elevate operational costs, and weaken the market competitiveness of small and medium foundry enterprises.

How to Optimize Core Molding Machine Parameters for Stable Horizontal Molding

Optimizing core parameters of the molding machine is the most cost-effective upgrade to enhance horizontal molding precision and cycle speed without large-scale equipment replacement.

• The performance of the main molding machine directly defines the overall operational efficiency of the entire horizontal iron casting molding line. Traditional uncalibrated molding machines feature unstable hydraulic compaction pressure, inconsistent mold locking speed, and delayed demolding response, resulting in variable cycle times and low mold qualification rates.
• Professional parameter optimization focuses on three core indicators: constant hydraulic pressure control, precise mold positioning accuracy, and standardized cycle rhythm adjustment.

Stabilizing compaction pressure ensures one-time dense mold forming, eliminating repeated compaction operations and reducing defective rework. Upgrading four-column guiding structures minimizes mold parting deviation, ensuring consistent dimensional accuracy for batch horizontal molding. The following data table demonstrates the obvious efficiency improvement brought by professional molding machine parameter tuning:

Chong Jen Machinery specializes in targeted molding machine parameter calibration and mechanical optimization for horizontal molding scenarios. Based on decades of foundry field experience, we adjust dynamic hydraulic parameters and program logic according to customer workpiece characteristics, helping horizontal iron casting molding lines achieve faster, more stable batch production and effectively reduce long-term defective losses.

Why Automatic Sand Molding Machine Matching Is Critical for Line Efficiency

Perfect performance matching between an automatic sand molding machine and the main molding machine is the core solution to eliminate bottlenecks in horizontal iron casting molding lines, serving as the foundation of high-quality and high-speed horizontal molding.

• Molding sand quality determines mold stability and casting finish; traditional manual or semi-automatic sand mixing equipment cannot maintain stable sand moisture, particle uniformity, and compaction density, forming the biggest production bottleneck for most foundries.
• A qualified automatic sand molding machine integrates real-time sensor detection, automatic proportioning, and intelligent stirring functions, precisely controlling sand moisture within ±1% error and filtering out fine powder and metal impurities in real time. This equipment provides continuous, high-standard molding sand for the horizontal molding process, completely solving common problems such as mold collapse, surface porosity, and line standby shutdowns caused by unqualified sand materials.

Moreover, modern automatic sand molding machine models support synchronous linkage with molding machine operating rhythm, automatically adjusting sand supply volume and speed according to line operating status. This intelligent matching eliminates sand accumulation or sand shortage, balances the working rhythm of each production node, and improves the overall continuity of the horizontal iron casting molding line. Scientific sand system matching can reduce unplanned downtime by more than 25% and stabilize batch horizontal molding quality significantly.

What Automation Upgrades Further Improve Horizontal Iron Casting Molding Line Productivity

Intelligent automation transformation is essential to achieve qualitative efficiency improvement for traditional horizontal molding production lines, reducing manual dependence and human-induced errors throughout the workflow.

• Most outdated horizontal iron casting molding lines rely on manual core setting, manual mold inspection, and manual workpiece handling, which occupy nearly one-third of the total production cycle and restrict maximum output. Systematic automation upgrades cover full-process optimization of molding machine operation, sand material supply, and mold conveying. Upgraded automatic core-setting stations realize parallel operation with mold compaction processes, compressing overall takt time and improving unit output.
• Intelligent conveying systems achieve seamless mold transfer from molding, pouring to cooling, eliminating manual handling waiting time and cross-operation interference. In addition, real-time data monitoring modules track the operating status of the automatic sand molding machine and main molding machine, automatically alarming and troubleshooting minor abnormalities to prevent large-scale shutdowns.

Different from single-equipment upgrades, systematic automation transformation realizes closed-loop intelligent production, ensuring every horizontal molding cycle follows standardized parameters. This upgrade not only improves hourly output but also unifies batch product precision, greatly reducing post-processing labor costs and rework losses for foundries.

How Scientific Workshop Layout Optimizes Horizontal Molding Continuity

Reasonable workshop layout is a low-cost, high-return optimization method to maximize the performance of horizontal iron casting molding lines, effectively solving congestion and low-space-utilization problems that limit horizontal molding efficiency.

• Many foundry workshops adopt disordered equipment placement, leading to long mold conveying paths, repeated workpiece handling, and blocked equipment heat dissipation. These unreasonable layouts cause frequent line stagnation and low overall operational efficiency despite high-performance molding machine and automatic sand molding machine configurations.

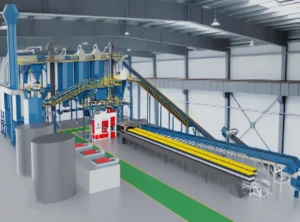

• Optimized horizontal molding line layouts adopt linear streamlined arrangements, placing sand treatment systems, main molding machine units, pouring stations, and cooling tunnels in sequential production order to avoid workpiece backtracking and redundant movement. Reserved standardized maintenance spacing ensures daily equipment inspection and component replacement do not interfere with continuous production.
• Centralized layout of dust removal and sand recovery systems shortens transmission pipelines, improving sand supply response speed and negative pressure purification efficiency. Scientific layout balancing eliminates single-equipment idle bottlenecks, improves overall line coordination, and increases horizontal iron casting molding line comprehensive efficiency by 15% to 20% without additional equipment investment.

How Preventive Maintenance Sustains Long-Term Horizontal Molding Efficiency

Long-term stable high efficiency of horizontal iron casting molding lines relies entirely on standardized preventive maintenance systems, avoiding efficiency attenuation caused by equipment aging and sudden failures.

• Long-term continuous horizontal molding operation causes gradual wear on molding machine guide rails, hydraulic seals, and impeller components, while automatic sand molding machine filter screens and stirring devices are prone to blockage and performance degradation. Without regular scientific maintenance, equipment operating accuracy declines continuously, molding cycle times extend, and unplanned downtime increases sharply, offsetting previous optimization benefits.
• A complete preventive maintenance system includes daily dust cleaning and abnormality inspection, weekly component calibration, monthly parameter verification, and seasonal lubricating oil replacement.Timely replacement of worn parts ensures the molding machine and automatic sand molding machine always maintain optimal operating status. Industry data shows that standardized maintenance reduces unplanned downtime of horizontal molding lines by more than 60% and extends core equipment service life by 30%.

Chong Jen Machinery provides exclusive full-cycle maintenance guidelines for horizontal iron casting molding lines, helping customers establish standardized equipment management mechanisms to sustain long-term efficient and stable horizontal molding production.

Conclusion

Systematic upgrades stabilize horizontal molding efficiency and maximize foundry production profits.

Contact Chong Jen Machinery

For professional horizontal iron casting molding line optimization, customized molding machine tuning and automatic sand molding machine matching solutions,

contact Chong Jen Machinery via email: [email protected]
