How Intelligent Upgrade Improves Horizontal Molding Line？

Traditional horizontal molding relies heavily on labor, causing unstable quality and low production efficiency.

Intelligent upgrading optimizes horizontal molding workflows, empowers horizontal flaskless automatic molding line and horizontal flaskless molding machine, and upgrades sand molding machine precision for smart, low-cost foundry production.

Explore intelligent transformation tactics to boost your foundry’s long-term competitiveness.

Core Bottlenecks of Traditional Horizontal Molding Production Lines

Most traditional foundry workshops using conventional horizontal molding systems face prominent operational bottlenecks that restrict scalable and high-quality manufacturing.

• Traditional horizontal molding production highly depends on manual operation and semi-automatic mechanical control, lacking digital precision adjustment and real-time data monitoring capabilities. The supporting ordinary sand molding machine operates with fixed parameters, unable to dynamically adjust sand moisture, density, and proportion according to production changes, resulting in unstable mold quality.
• The traditional horizontal flaskless molding machine features single operating logic, frequent manual debugging, and long mold switching time, seriously limiting production flexibility. Manual intervention in mold positioning, sand filling, and compaction leads to inconsistent batch precision, causing common defects such as dimensional deviation, sand inclusion, and porosity. Industry data shows that unupgraded horizontal molding lines have a defect rate of 8% to 10%, low equipment OEE below 60%, and excessive labor and material waste.

These long-standing problems make traditional lines unable to adapt to modern foundry demands of multi-variety customization, high-precision standards, and low-consumption production, hindering enterprise profit growth and market expansion.

What Intelligent Modules Upgrade Horizontal Flaskless Automatic Molding Line Performance

Intelligent upgrading of horizontal molding lines focuses on digital control, automatic linkage, and data visualization, with three core intelligent modules thoroughly improving line operating efficiency and stability.

• The first is PLC intelligent program control, which replaces manual debugging with preset digital programs to realize automatic mold closing, precise compaction, and synchronous demolding for the horizontal flaskless molding machine. This module standardizes each molding cycle and eliminates human-induced errors.
• The second is intelligent sand treatment linkage module, which enables real-time data interaction between the automatic sand molding machine and the main molding line. The sand molding machine automatically adjusts sand proportion, moisture content, and supply speed according to line operating rhythm, ensuring stable sand quality for every mold.
• The third is real-time monitoring and early warning module, which collects equipment operating data, identifies abnormal pressure, unstable sand supply, and positioning deviation, and triggers early alarms to avoid batch defective products. The following data table shows the performance improvement brought by intelligent module upgrading:

Chong Jen Machinery integrates customized intelligent control programs for horizontal flaskless automatic molding line systems. We optimize the matching logic between horizontal flaskless molding machine and sand molding machine, helping foundries complete low-cost intelligent upgrades and achieve stable high-efficiency horizontal molding production.

How Intelligent Sand Molding Machine Optimization Stabilizes Molding Quality

Molding sand quality is the foundation of horizontal molding casting quality, and intelligent sand molding machine upgrading is the key link to eliminate quality fluctuations in traditional production.

• Ordinary sand molding machine equipment can only complete single fixed stirring and mixing, unable to perceive real-time changes in ambient temperature and humidity, resulting in drifting sand parameters. After intelligent upgrading, the sand molding machine is equipped with high-precision sensors and closed-loop control systems, realizing automatic detection and precise adjustment of sand moisture, bonding agent proportion, and sand density. The intelligent system automatically filters fine powder and impurities in recycled sand, maintains stable sand activity, and greatly reduces unqualified sand output.
• Meanwhile, the upgraded equipment supports synchronous linkage with the horizontal flaskless automatic molding line, automatically adjusting sand supply volume according to line output speed to avoid sand accumulation or supply shortage. This intelligent matching mode completely solves the problem of inconsistent mold compactness caused by unstable sand quality, effectively reducing casting defects and improving batch product uniformity for horizontal molding production.

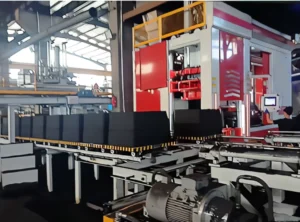

Efficiency and Flexibility Improvement of Intelligent Horizontal Flaskless Molding Machine

The horizontal flaskless molding machine is the core host of the entire horizontal molding line, and its intelligent transformation fundamentally improves production efficiency and flexible production capacity.

• Traditional horizontal flaskless molding machine requires manual parameter adjustment and mold replacement, with a single mold switching time of more than one hour, unable to adapt to multi-variety customized orders.
• After intelligent upgrading, the equipment presets multiple production process parameters, realizing one-click switching of different mold specifications and production modes, shortening mold change time to within 15 minutes. The intelligent hydraulic control system achieves constant-pressure precise compaction, ensuring consistent mold density and dimensional accuracy for each casting.

In addition, the equipment optimizes the core-setting and mold opening rhythm, realizing parallel operation of multiple processes and compressing single molding cycle time. The intelligent horizontal flaskless molding machine can automatically adjust operating speed according to order volume, realizing flexible switching between mass production and small-batch customized production, greatly expanding the production applicability of the horizontal molding line.

Cost-Saving and Management Value of Intelligent Molding Line Upgrading

Intelligent upgrading of horizontal molding lines brings significant long-term cost-saving and digital management value for foundry enterprises.

• In terms of labor costs, the fully linked intelligent horizontal flaskless automatic molding line reduces on-site operating personnel by more than 60%, eliminating heavy manual operations such as sand mixing, mold calibration, and equipment debugging.
• In terms of material costs, the intelligent sand molding machine improves sand recycling rate to over 93%, reducing new sand supplementation and solid waste disposal costs.
• In terms of maintenance costs, the real-time fault early warning system avoids sudden equipment failures and unplanned downtime, reducing equipment maintenance losses.

Meanwhile, the data visualization system records all production data including output, defect rate, and equipment operating status, helping managers accurately locate production bottlenecks, formulate scientific production plans, and realize refined digital management of horizontal molding production. This comprehensive optimization effectively improves factory profitability and standardized production level.

Future Development Trends of Intelligent Horizontal Molding Production

With the continuous iteration of Industry 4.0 smart manufacturing, intelligent horizontal molding is developing toward full unmanned operation, cloud remote monitoring, and AI adaptive optimization.

• Future horizontal flaskless automatic molding line will realize full-process unmanned production from sand preparation, molding, pouring to cooling. The upgraded horizontal flaskless molding machine and sand molding machine will support cloud data interconnection, enabling managers to remotely view production status and adjust parameters in real time.
• The AI intelligent analysis system will independently optimize process parameters according to historical production data, continuously improving production efficiency and product qualification rate.

In addition, green intelligent optimization will become mainstream, with equipment automatically adjusting energy consumption and dust emission standards to achieve low-carbon and environmentally friendly production. Early completion of intelligent upgrading will help foundry enterprises occupy a leading position in the increasingly competitive precision casting market.

Conclusion

Intelligent upgrading stabilizes quality, boosts efficiency and cuts costs for horizontal molding lines.
