Glass sand blasting machine
Glass sand blasting machine
- With touch screen operation, PLC control;
- Equipped with automatic guns and manual gun;
- Material for a nozzle is boron carbide, which can be long life;
- Automatically dust collection;
- Low cost for usage and maintenance:
- Less floor space
Quote Now
Product Parameters
Applications

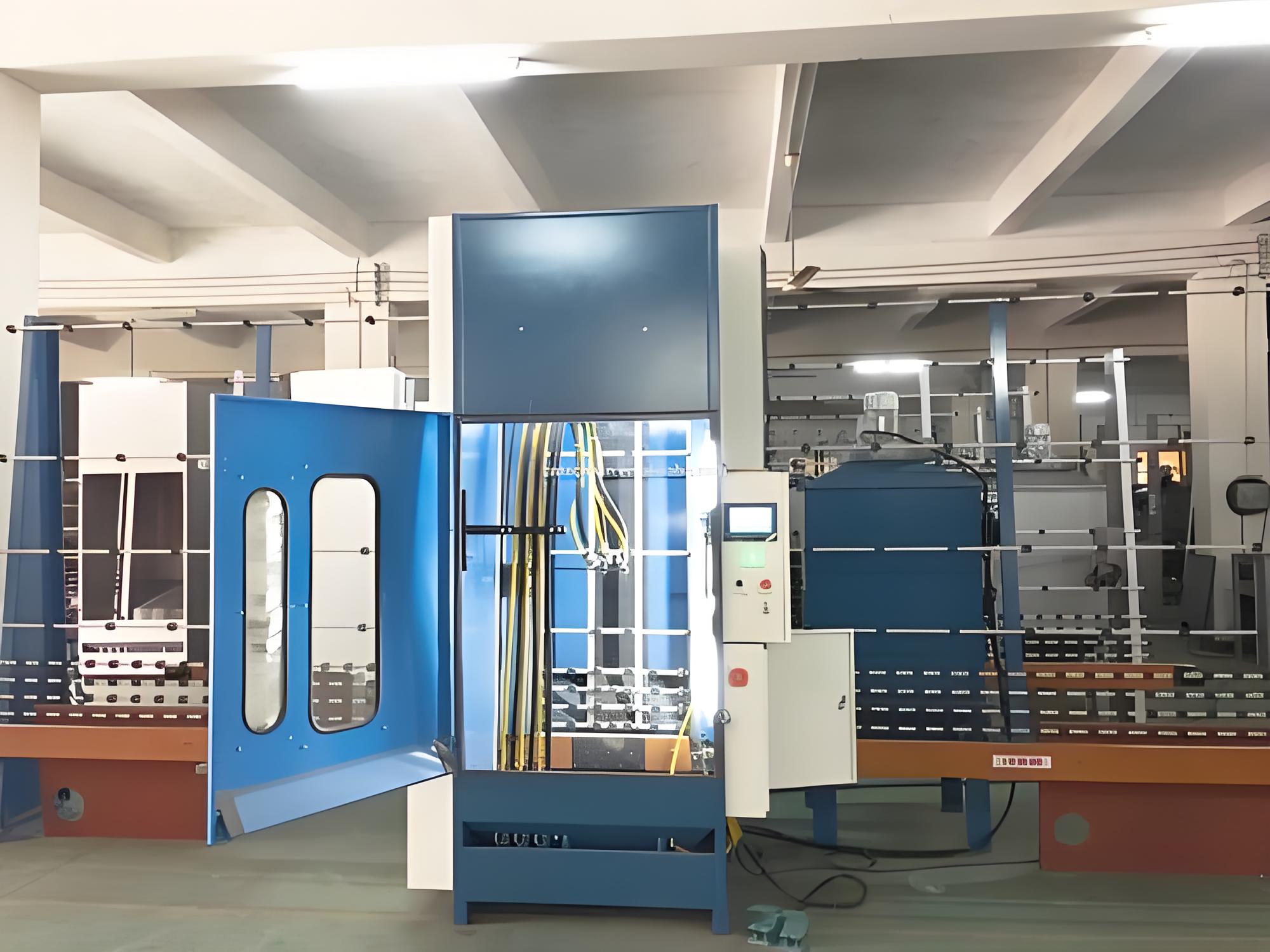

Automatic Vertical Glass Sandblasting Machine has two functions: fully automatic and manual. lt is equipped with 3 automatic spray guns and 1 manual spray gun in this machine. The lifting of the spray gun and the conveying of the glass are all driven by timing belts, which are stable and durable. The lifting device of the spray gun is located outside the machine body, low failure rate.
The machine is suitable for frosted glass of offices, doors, windows, shower rooms, etc.
Main Benefits
- With touch screen operation, PLC control;
- Equipped with automatic guns and manual gun;
- Material for a nozzle is boron carbide, which can be long life;
- Automatically dust collection;
- Low cost for usage and maintenance:
- Less floor space
Model & Specification
| Technical parameter | BP1600 | BP2000 | BP2500 |
| Auto gun | 3 | 3 | 3 |
| Manual gun | 1 | 1 | 1 |
| Max glass size | 1600×3660 | 2000×3660 | 2500×3660 |
| Glass thickness | 3-50mm | 3-50mm | 3-50mm |
| Total power | 3.5kw | 3.5kw | 3.5kw |
| Outline dimension | 4650x1500x2400 | 6750x1500x2800 | 6750x1500x3300 |
| Total weight | 1010kg | 1090kg | 1210kg |
If these standard models don’t fit your needs, we can design tailor-made glass sand blasting machine according to your requirement.
