- High Efficiency – Quick and thorough cleaning.
- Durable Construction – Robust materials for longevity.
- Customizable Solutions – Tailored to specific needs.
- Energy-Saving Technology – Reduces costs, lessens environmental impact.
- Expert After-Sales Support – Comprehensive service and technical assistance.

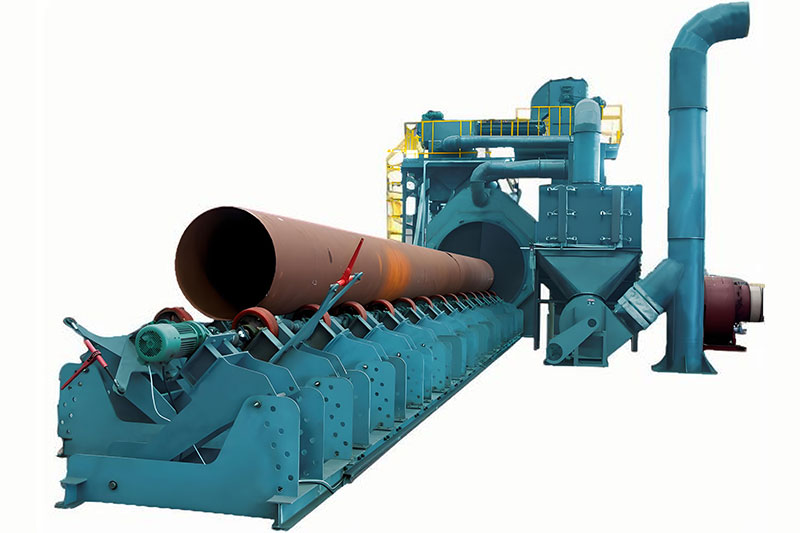

Pipe External Blasting Machine
Pipe External Blasting Machine
- The roller conveyor shot blasting machine is compact design and the machine can have pit or without pit.
- Fully tailor made blasting machine according to workpiece shape and productivity requirement.
- Roller conveyor speed adjustable from 5m/min to 4m/min.
- Touch screen operator interface and integrated PLC, automatic mode or manual mode;
- The blasting chamber is protected by wear-resistant manganese steel liner, lifetime is about 15000 hours.
- Series of rubber screens keep the abrasive inside the blasting machine in entry chamber and exit cleaning chamber.
Quote Now
Product Parameters
Applications
The steel pipe shot blasting machine is a blasting machine with special roller conveyor, designed for removing scale, paint and rust from carbon steel pipes. Another application is to blast cleaning LPG cylinders, gag cylinders or cylindrical workpieces which can easily pass through the blasting chamber on a V shape roller conveyor.
Main Benefits
- The roller conveyor shot blasting machine is compact design and the machine can have pit or without pit.
- Fully tailor made blasting machine according to workpiece shape and productivity requirement.
- Roller conveyor speed adjustable from 5m/min to 4m/min.
- Touch screen operator interface and integrated PLC, automatic mode or manual mode;
- The blasting chamber is protected by wear-resistant manganese steel liner, lifetime is about 15000 hours.
- Series of rubber screens keep the abrasive inside the blasting machine in entry chamber and exit cleaning chamber.
Model & Specification
| Machine type | QP-300 | QP-800 | QP-1200 | QP-2000 |
| Max diameter of pipe (mm) | 300 | 800 | 1200 | 2000 |
| Max pass speed (m/min) | 4 | 4 | 2 | 2 |
| Min pass speed (m/min) | 0.5 | 0.5 | 0.5 | 0.5 |
| Type of transport | V rollers | V rollers | V rollers | V rollers |
| Multiple pass | Available | No | No | No |
If these standard models don’t fit your needs, we can design tailor-made shot blasting machine according to your workpieces.
Feature
V shape roller
- Durable material;
- Easy for pipe movement and rotation;

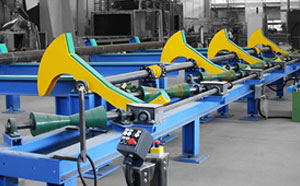

For easy loading and continuous workflow;
- For easy loading and continuous workflow

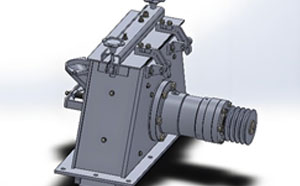

High power and speed blast wheel
- Big power belt driven motor;
- Eco motor optional
- High speed abrasive throw
- Thorough cleaning of pipe surface
- High chrome wear resistant parts

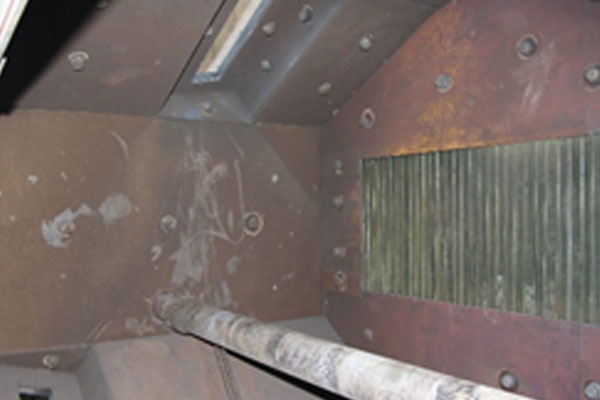

Shot Blasting Cabinet
- Long lifetime Manganese protection liner
- Through bolted design, easy replacement
- Friendly maintenane
