- High Efficiency – Quick and thorough cleaning.
- Durable Construction – Robust materials for longevity.
- Customizable Solutions – Tailored to specific needs.
- Energy-Saving Technology – Reduces costs, lessens environmental impact.
- Expert After-Sales Support – Comprehensive service and technical assistance.

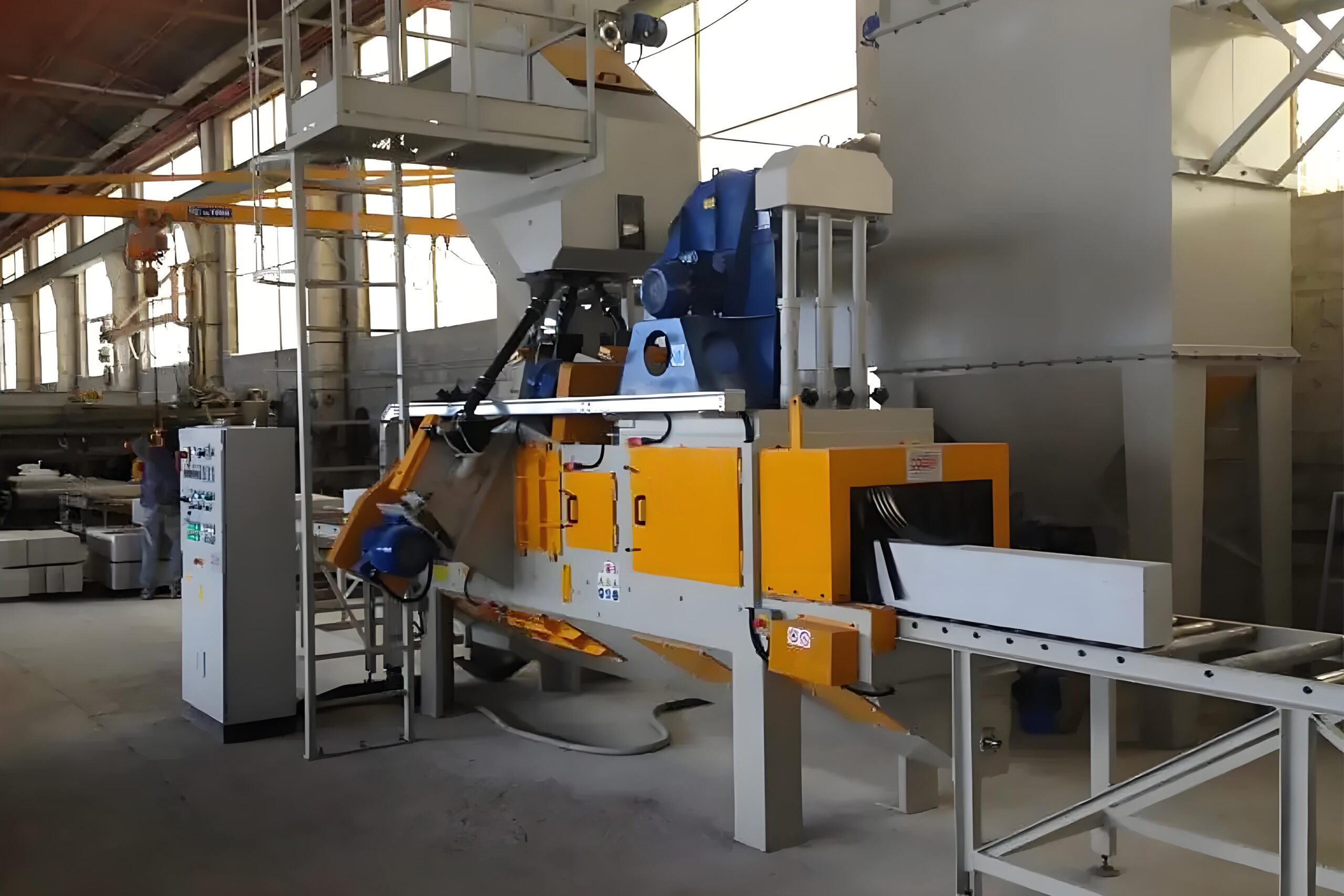

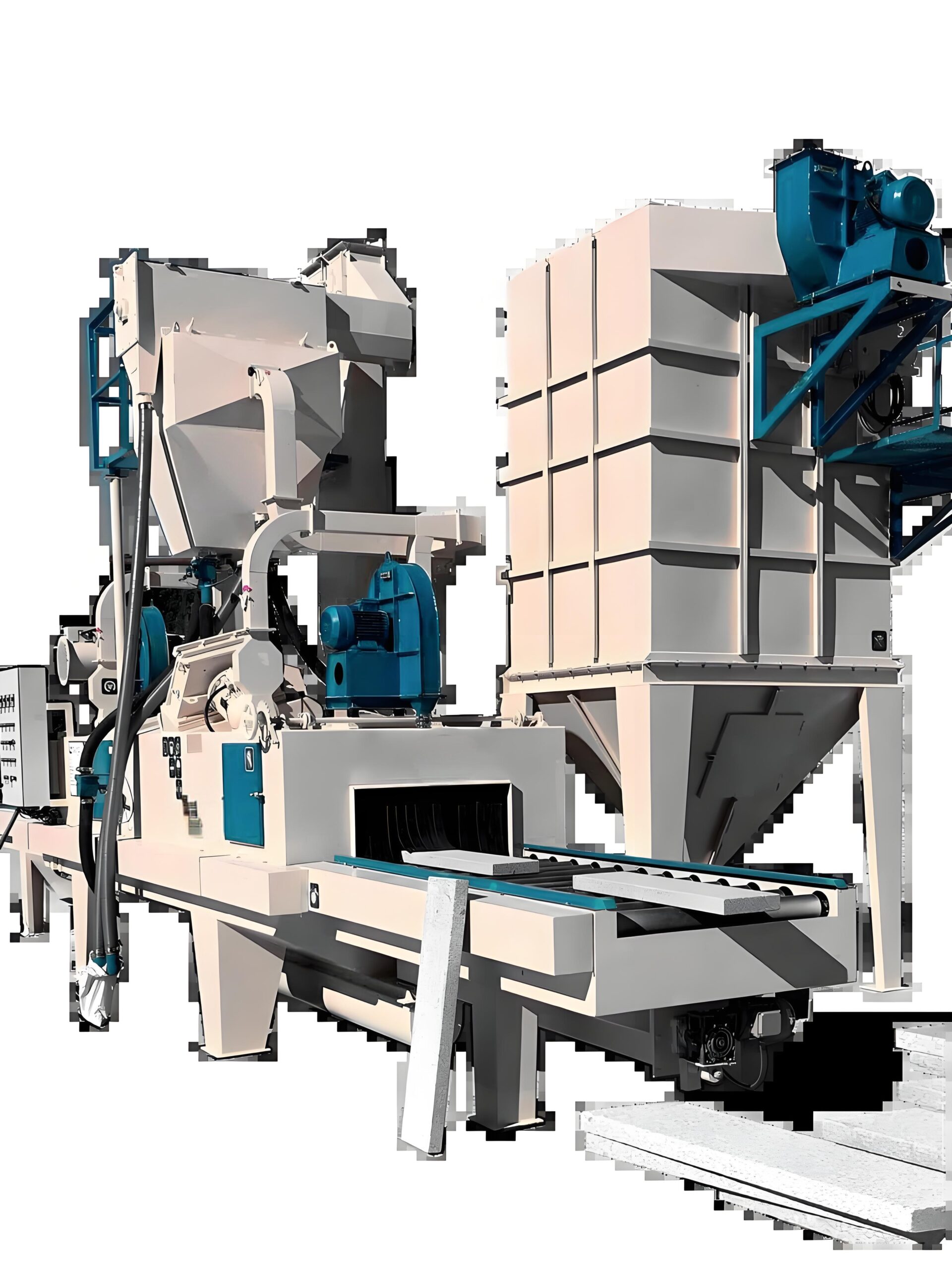

Stone blast machine
Stone blast machine
- Several transport system choice: roller conveyor, mesh belt conveyor, rubber belt conveyor
- Very high productivity with very low operating cost
- Possible simultaneous treatment of the top and side surfaces.
- Speed adjustment of conveyor and blast wheels is controlled through an Inverter
- A high-pressure blower in the cleaning chamber will blow off the remaining abrasive on stones.
Quote Now
Product Parameters
Applications
Marble stone shot blasting machine is normally used for surface roughening treatment of granites, marbles and concrete blocks, slabs, staris.
Our standard shot blast machines can process concrete stones and blocks widths from 600 mm to 1200 mm.
Surface treatment of natural stone and concrete is used for surface roughening to achieve a bush-hammered, sandblasted, flamed, or antiqued effect.
Industrial requirements for surface treatment of natural stone and concrete vary depending on the sector and specific applications, necessitating bespoke solutions and specialized equipment to ensure efficient and high-quality results.
In the field of construction and building, surface treatment is crucial for the design of cladding and flooring, as the surface achieves an extremely natural appearance, enhancing the aesthetics of buildings.
Main Benefits
- Several transport system choice: roller conveyor, mesh belt conveyor, rubber belt conveyor
- Very high productivity with very low operating cost
- Possible simultaneous treatment of the top and side surfaces.
- Speed adjustment of conveyor and blast wheels is controlled through an Inverter
- A high-pressure blower in the cleaning chamber will blow off the remaining abrasive on stones.
Model & Specification
| Machine Model | ST600 | ST800 | ST1000 | ST1200 |
| Max. working width of machine(mm) | 600 | 800 | 1000 | 1200 |
| Max. working height of machine(mm) | 400 | 400 | 400 | 400 |
| Working speed(frequency adjustable) m/min | 0.5~6 | 0.5~6 | 0.5~6 | 0.5~6 |
| number of wheels×power(kw) | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 |
| Vertical wheel optional | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 |
| Foundation pit required | No | No | No | No |
If these standard models don’t fit your needs, we can design tailor-made shot blasting machine according to your workpieces.
Feature
Optional transport system

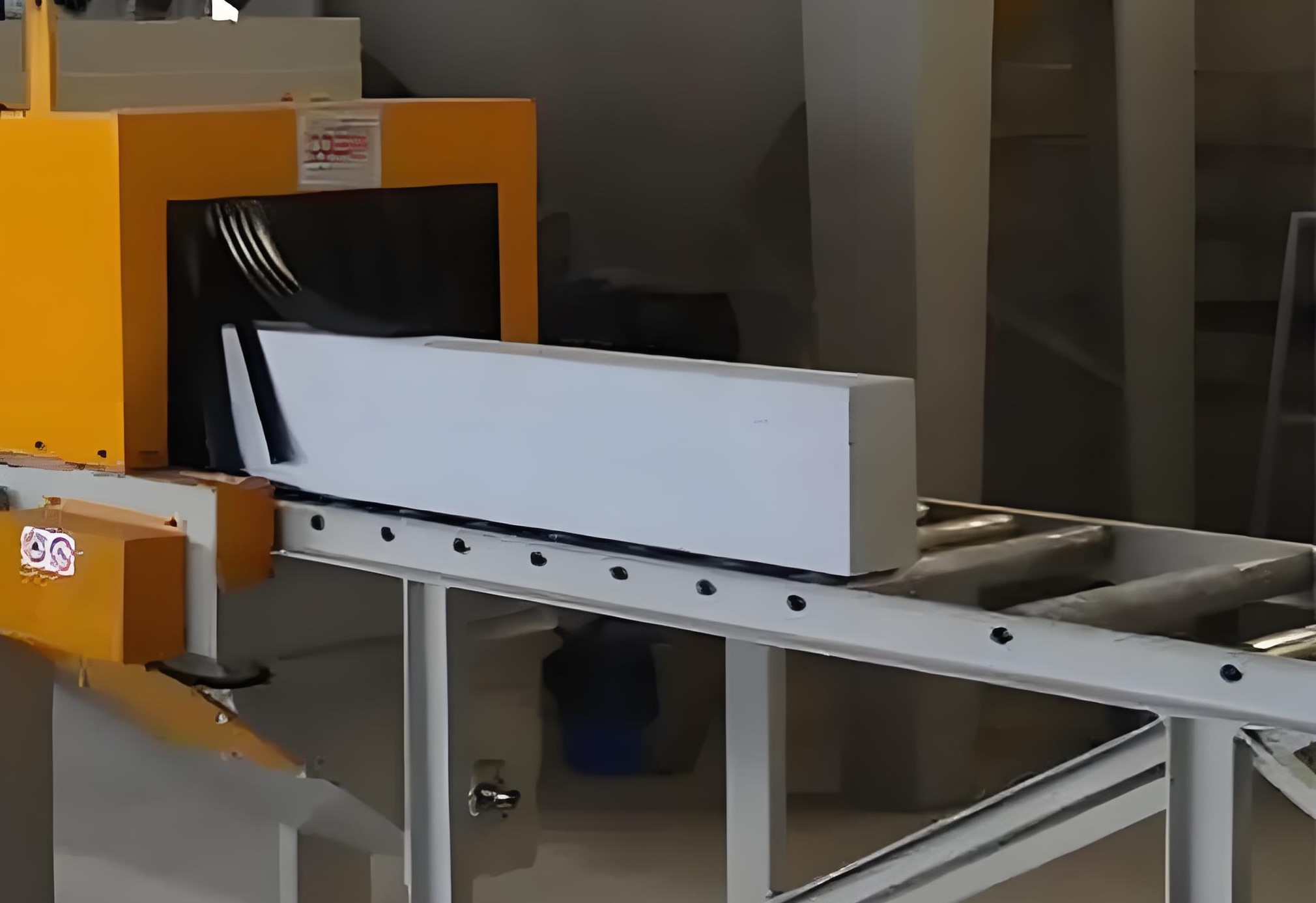

- Roller Conveyor
Optional transport system

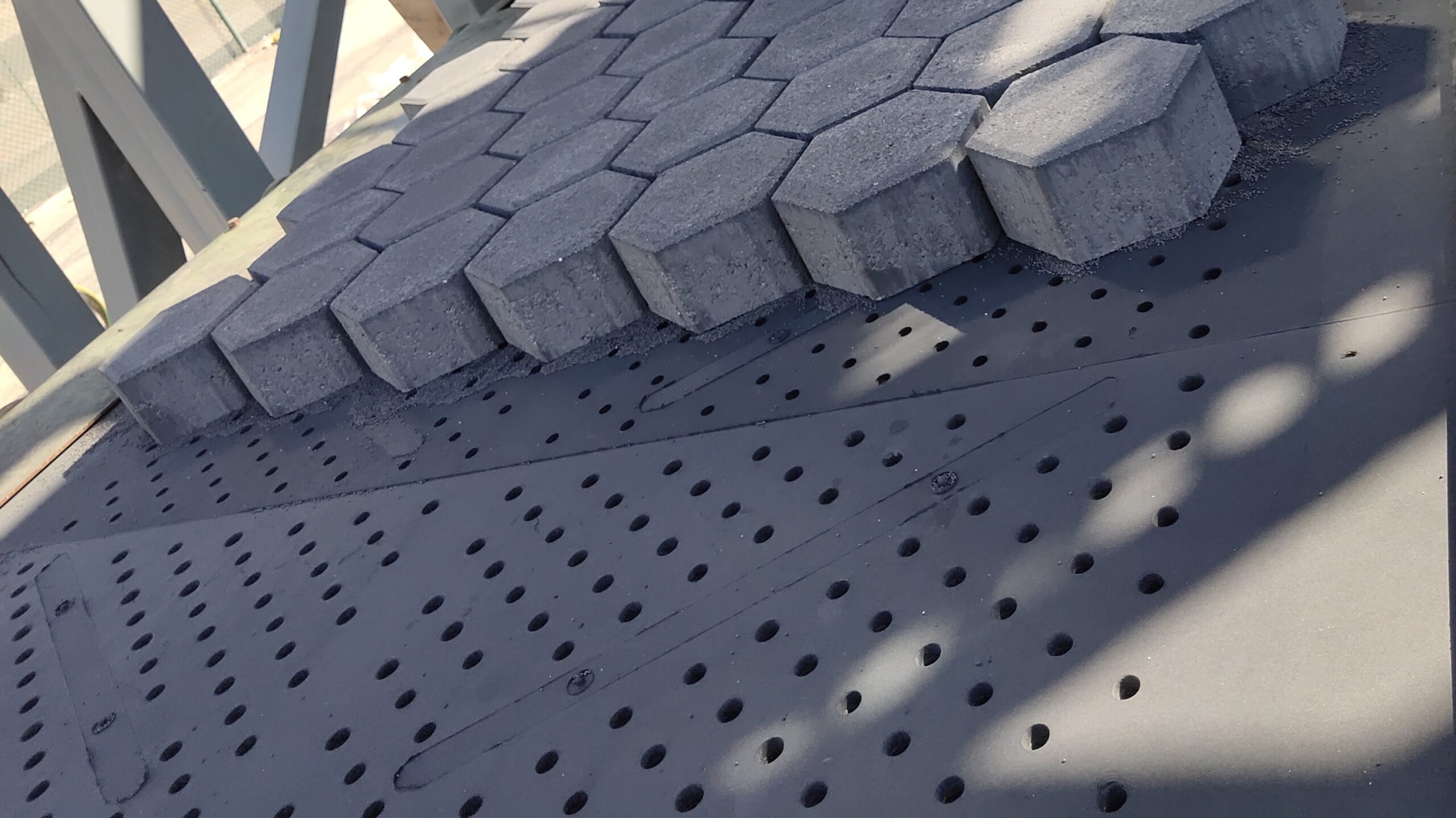

- Rubber belt conveyor
Optional transport system

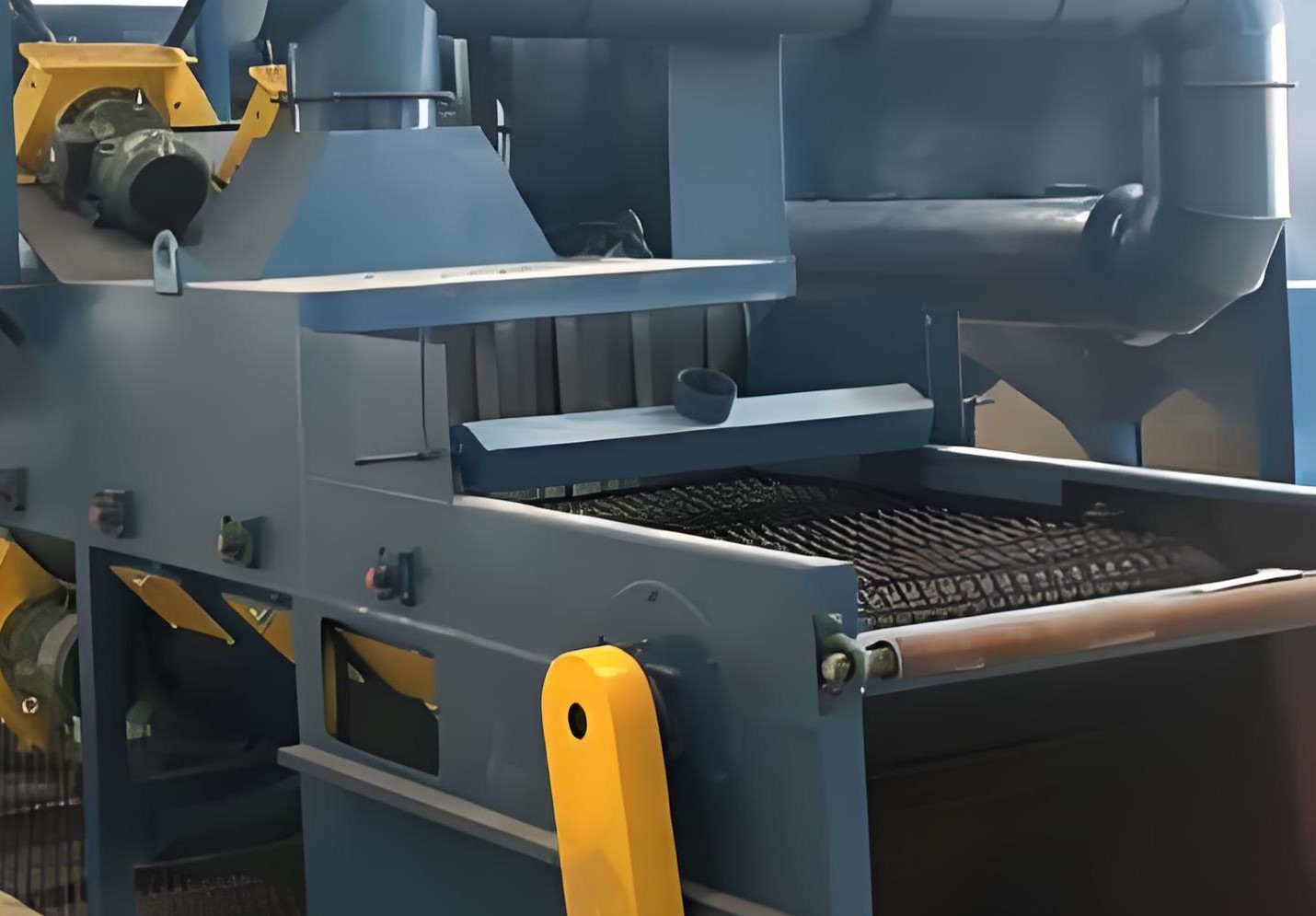

Wire mesh belt conveyor

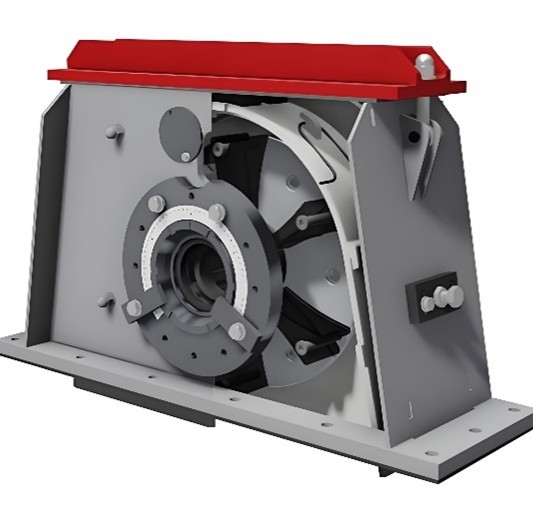

High speed blast wheel
- 3D simulation for wheel arrangement
- Direct motor driven/belt driven
- High speed abrasive throw
- Eco motor optional
- High chrome wear resistant parts

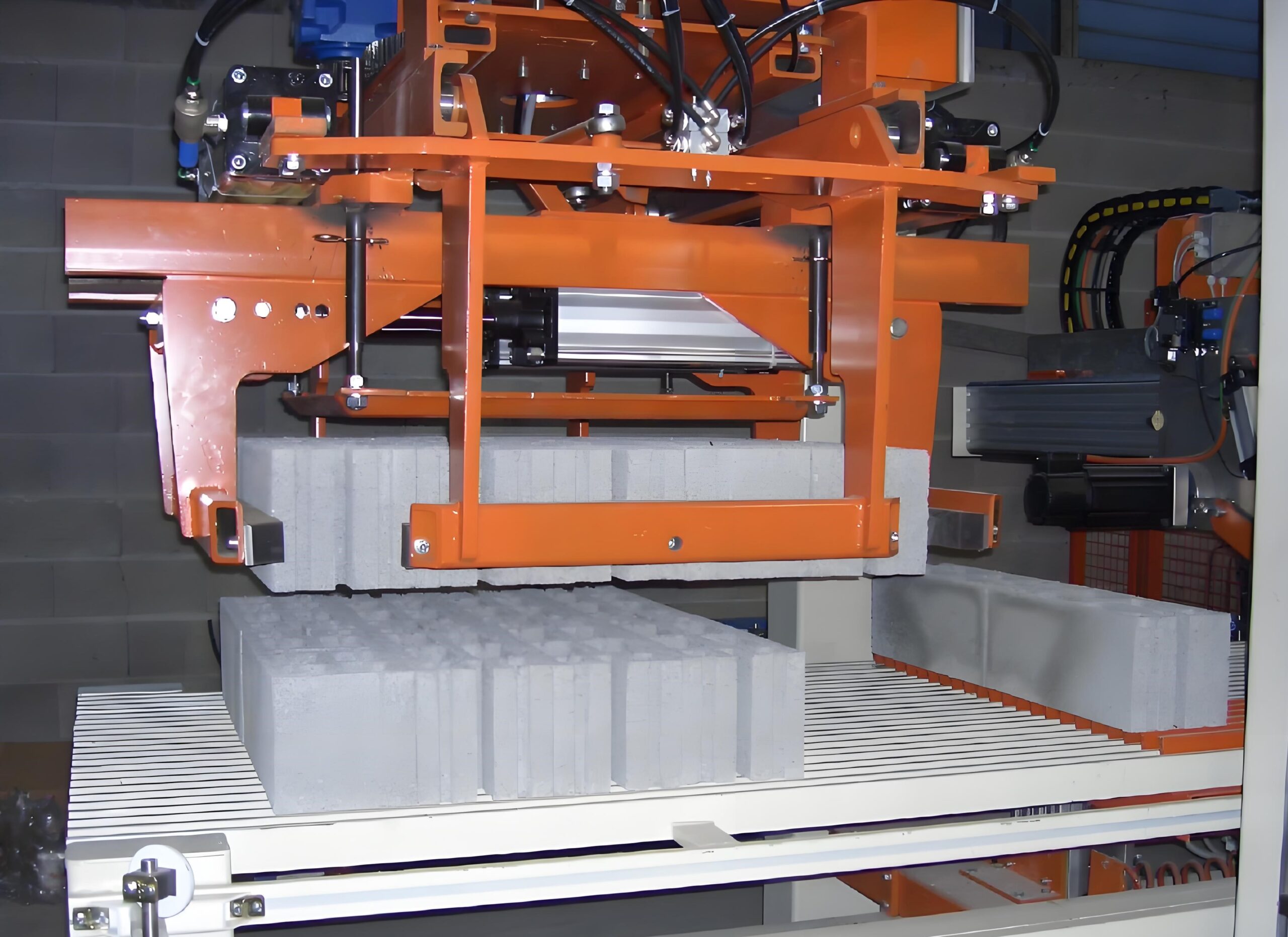

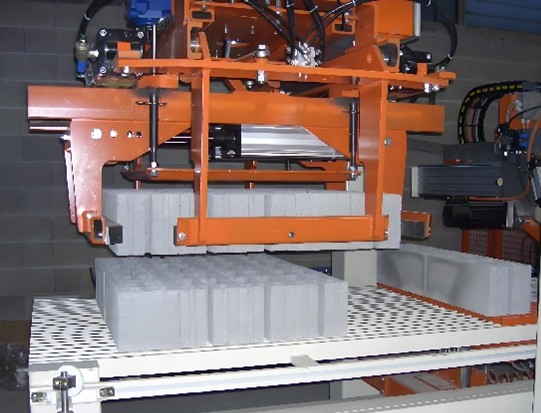

Stone/bricks handling manipulator (optional)
- For high speed productivity, we offer optional handling manipulator
