- High Efficiency – Quick and thorough cleaning.
- Durable Construction – Robust materials for longevity.
- Customizable Solutions – Tailored to specific needs.
- Energy-Saving Technology – Reduces costs, lessens environmental impact.
- Expert After-Sales Support – Comprehensive service and technical assistance.

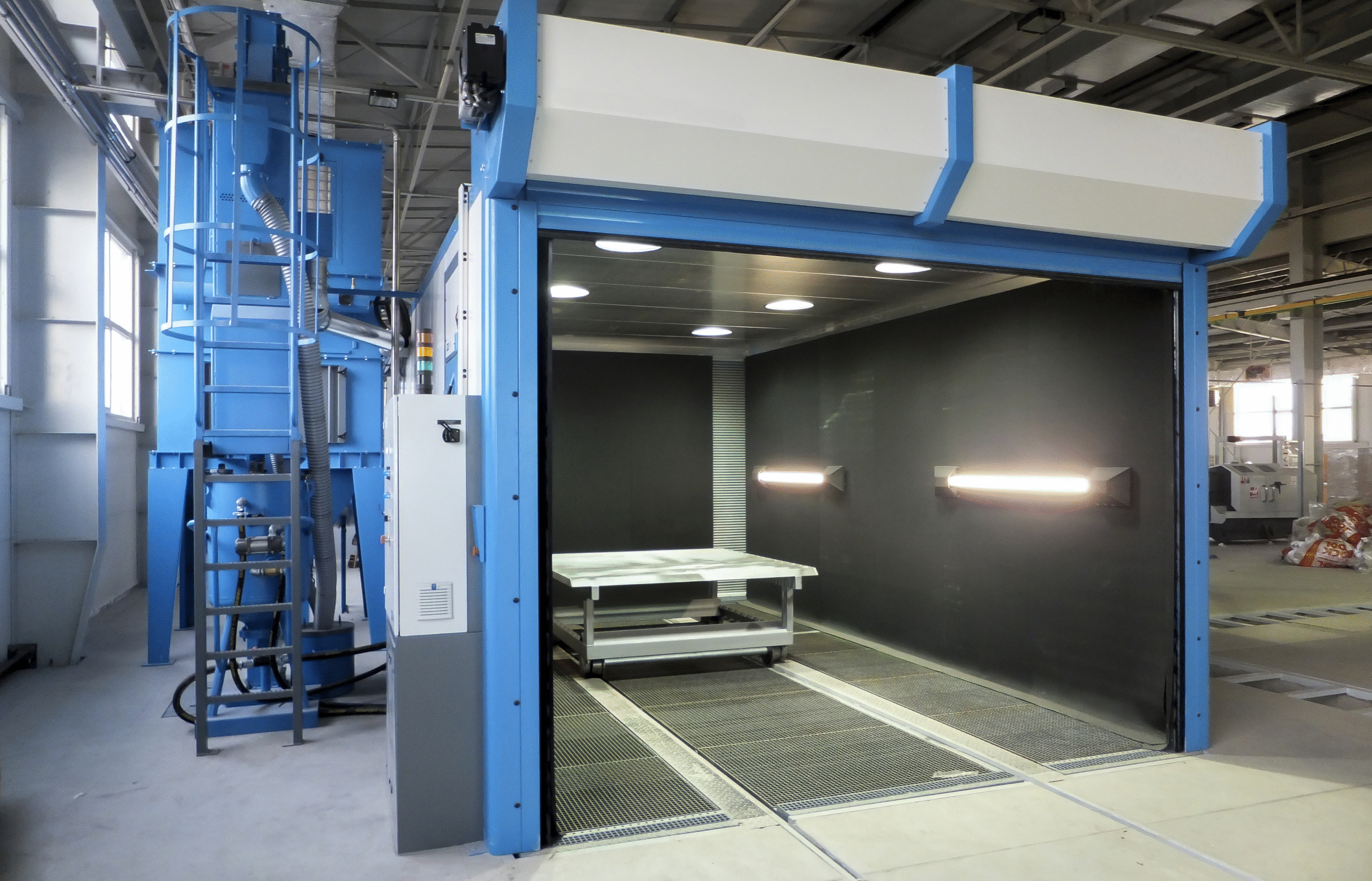

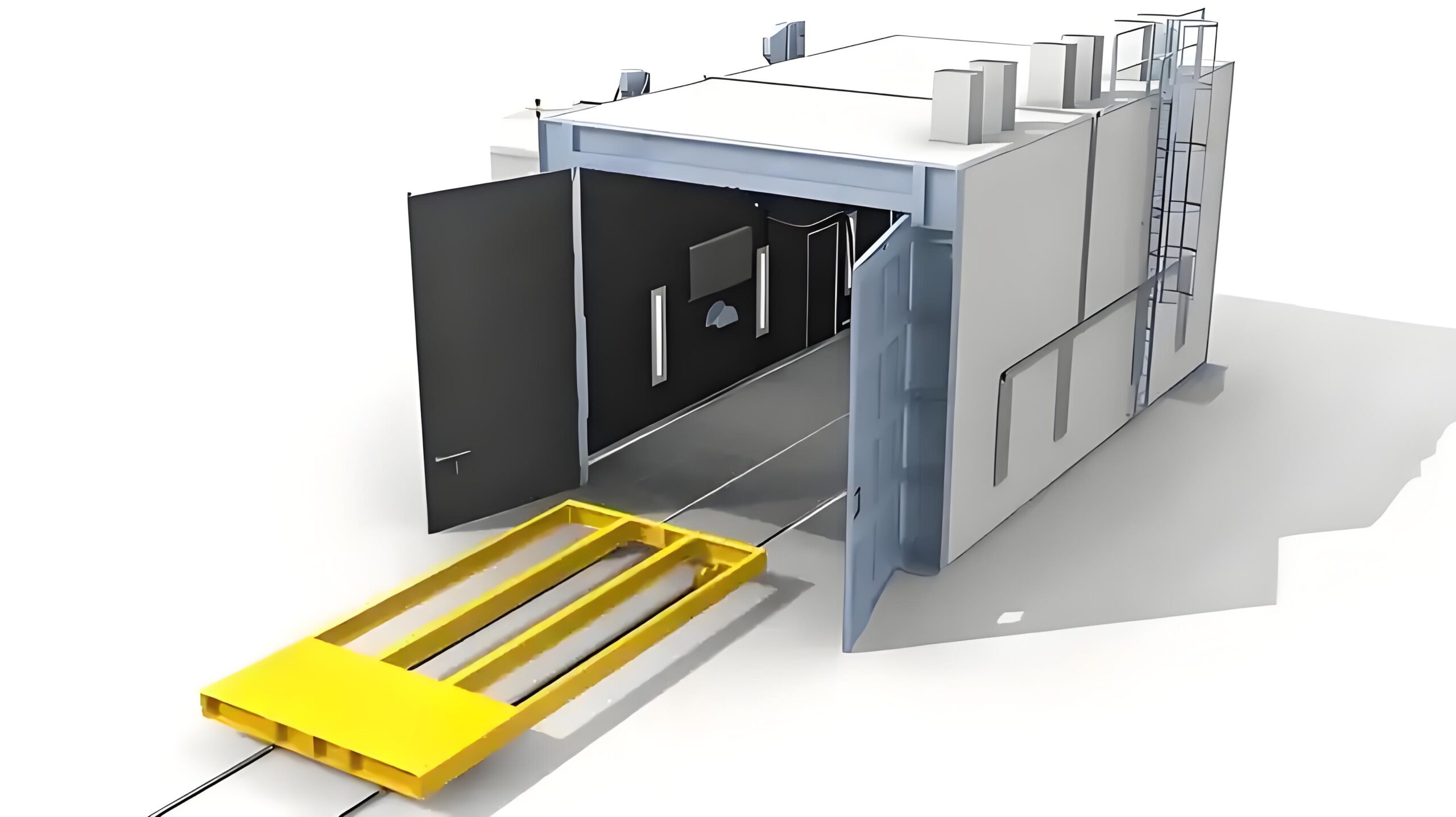

Sand blasting room
Product Parameters
Applications
Chong Jen Machinery offers abrasive blasting blast rooms tailored to meet the needs of companies seeking corrosion control prior to industrial coating or painting. We offer design, construction, and installation services for various sectors, including fabrication, defense, railroad, oil and gas, marine, and more.
We will work with you to choose between turn-key design-build for massive shipyard paint halls to a mid-size solution for a steel fabricator sandblast booth or simply help you retrofit your existing blast facility.
We offer standard pre-assembled blast booth, portable shipping container blasting room, pre-engineered blast booth, rail car blast room, industrial workshop blast room, blasting robots blast room, ship module blast room, wind tower blast room, etc.
If one of our standard blast rooms isn’t just right for your application, we will custom-engineer an enclosed blasting facility to meet your unique production and dimensional requirements. With all components engineered and built to work together, we provide balanced systems with no compatibility problems.
Main Benefits
- Easy and fast installation
- Environmental friendly.
- Automatic abrasive recovery.
- Several wall material options.
Model & Specification
| ITEM / MODEL | Q2634 | Q2636 | Q2646 | Q2648 | Q2658 |
| Chamber width | 3000mm | 3000mm | 4000mm | 4000mm | 5000mm |
| Chamber length | 4000mm | 6000mm | 6000mm | 8000mm | 8000mm |
| Chamber height | 3000mm | 3000mm | 4000mm | 4000mm | 4500mm |

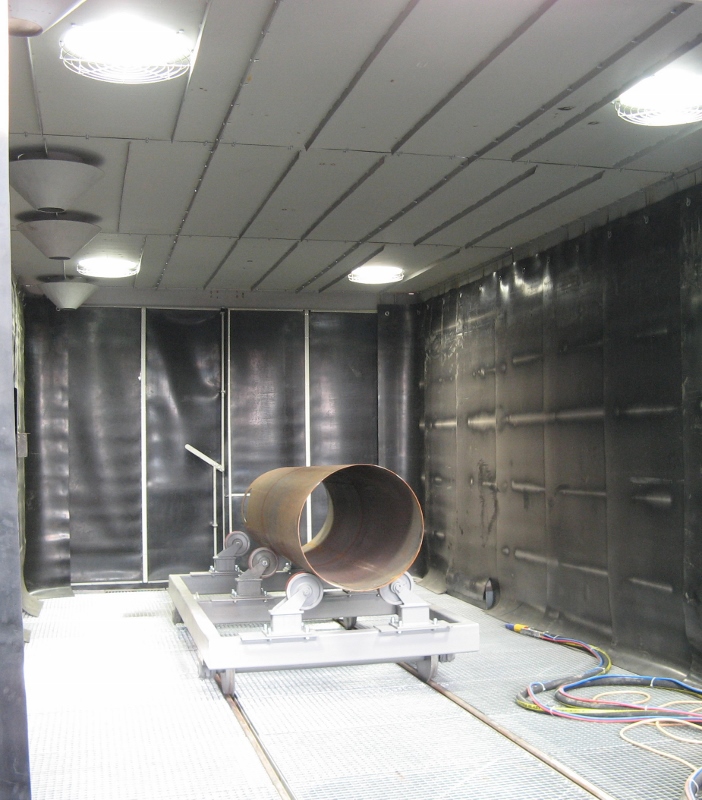

| Cart size | 1000x2000mm | 1200x3000mm | 1500x3000mm | 1500x5000mm | 2000x5000mm |
| Cart loading capacity | 2 ton | 5 ton | 5 ton | 5 ton | 10 ton |
| Pit depth | No pit | No pit | 400mm | 400mm | 400mm |
| Compressed air require | 6 Nm3/min | 6 Nm3/min | 6 Nm3/min | 6 Nm3/min | 12 Nm3/min |
| Exhaust fan air volume | 3500 m3/hr | 5000 m3/hr | 7500 m3/hr | 11000 m3/hr | 15000 m3/hr |
| Dust collector | Cartridge type | Cartridge type | Cartridge type | Cartridge type | Cartridge type |

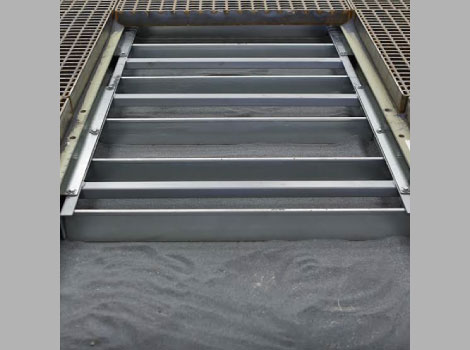

| Floor recovery system | Pneumatic | Floor scraper | Floor scraper | Floor scraper | Floor scraper |
Blast chambers come in all shapes and sizes, tailored to fit your specific needs. Customized blasting room size is welcomed to consult.
